Description

"PC Locations" are created to denote the workstation and the associated settings. Each location is unique and MUST only be assigned to a single work station.


Resolution


Configuring PC Locations

 In “Administrator” or "Manager" select the “General Menu” icon, then click onto “PC Locations”




.
  • sure you have the correct site selected
  • To create a new “PCID” click onto the “Green Plus” button.

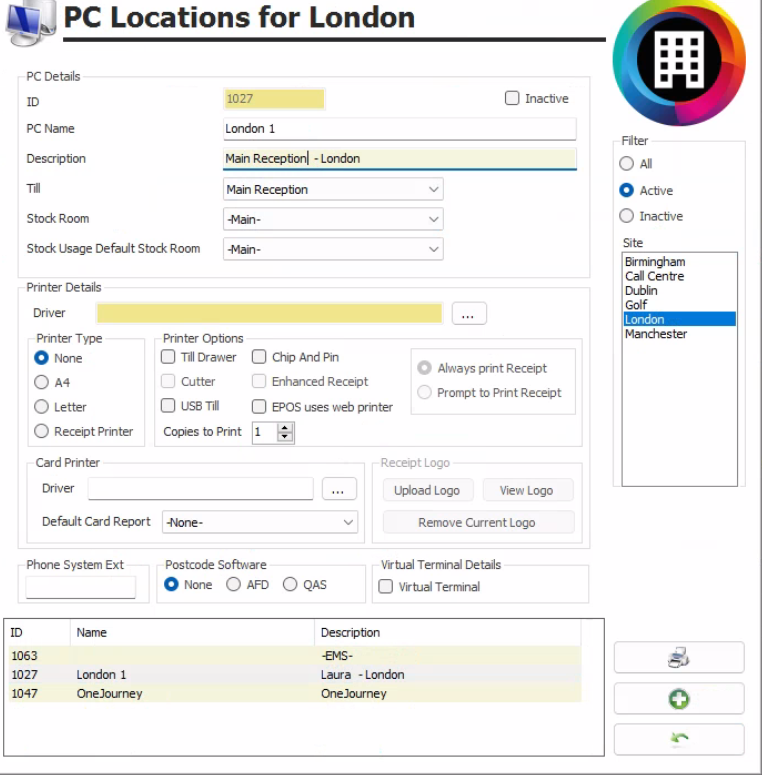

PC Details
  • “ID” – this field will automatically be populated once all the details have been entered relevant to each PCID.
  • “PC Name” – input the name of the PC
  • “Description” – input the description where the PCID is relevant to
  • “Till” – use the drop-down arrow located at the end of till box to state which till is allocated to this PCID
  • “Stock Room” – use the drop-down arrow located at the end of the stock room box and allocate a stock room for this PCID if relevant
  • “Stock Usage Default Stock Room” – as above
Printer Details
  • Select the relevant print type you have the following options to choose from:
    • “None” – if no printer is allocated to this PCID
    • “A4” – if an A4 printer is to be used to print receipts
    • “Letter” – if a letter printer is to be used to print receipts
    • “Receipt Printer” – if a receipt printer is allocated to this PCID.
  • “Till Drawer” – select if a till drawer is allocated to this PCID
  • “USB Till Drawer” – select if the till drawer has a USB connection, and is not directly linked to a receipt printer
  • “Chip and Pin” – select if this PCID has chip and pin allocated
  • “Driver” – input the Driver details, if Premier Software are supplying your receipt printer then this will be completed during the technical installation
  • Select printer options either “Always Print Receipt” or “Prompt to Print Receipt”.
  • Tick “Cutter” if required
  • Input the number of “Copies” of the receipt that you wish to obtain
  • "Enhanced Receipt" used to add logo and alternative languages (see site settings)
Postcode Software
  • If applicable state which postcode software is allocated to this PCID, this will be either “AFD” or “QAS”. This will be done during the technical installation.
  • Once completed “Green Tick “to save changes.
  • Press the “Green Backwards” arrow to return to the main Manager screen.
